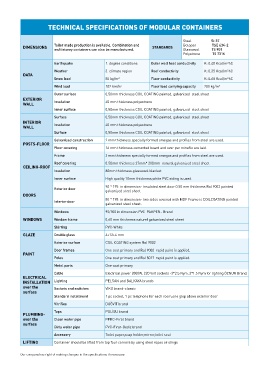

TECHNICAL SPECIFICATIONS OF MODULAR CONTAINERS

Steel St 37
Tailor made production is available. Combination and Betopan TSE 634-2
DIMENSIONS multistorey containers can also be manufactured. STANDARDS Glasswool TS 901
Polystrene TS 7316

Earthquake 1. degree conditions Outer wall heat conductivity K: 0.40 Kcal/m²hC
Weather 3. climate region Roof conductivity K: 0.35 Kcal/m²hC
DATA
Snow load 80 kg/m² Floor conductivity K: 0.68 Kcal/m²hC
Wind load 102 km/hr Floor load carrying capacity 200 kg/m²
Outer surface 0,50mm thickness COIL COATING painted, galvanized steel sheet
EXTERIOR
WALL Insulation 40 mm thickness polyestrene
Inner surface 0,50mm thickness COIL COATING painted, galvanized steel sheet
Surface 0,50mm thickness COIL COATING painted, galvanized steel sheet
INTERIOR
WALL Insulation 40 mm thickness polyestrene
Surface 0,50mm thickness COIL COATING painted, galvanized steel sheet
Galvanised construction 2 mm thickness specially formed omegas and profiles from steel are used.
POSTS-FLOOR
Floor covering 16 mm thickness cemented board and over pvc mineflo are laid.
Frame 2 mm thickness specially formed omegas and profiles from steel are used.
Roof covering 0.50mm thickness 27mm* 200mm natural galvanized steel sheet
CEILING-ROOF
Insulation 80mm thickness glasswool blanket
Inner surface High quality 10mm thickness,white PVC siding is used.
90 * 195 in dimension- insulated steel door 0.50 mm thickness Ral 9002 painted
Exterior door galvanized steel sheet
DOORS
80 * 198 in dimension- two sides covered with MDF Frame is COILCOATING painted
Interior door
galvanized steel sheet.
Windows 95/100 in dimension PVC PAKPEN- Brand
WINDOWS Window frame 0,60 mm thickness naturel galvanized steel sheet
Skirting PVC-White
GLAZE Double glass 4+12+4 mm
Exterior surface COIL COATING system Ral 9002

Door frames One coat primary and Ral 9002 rapid paint is applied.
PAINT
Poles One coat primary and Ral 5017 rapid paint is applied.
Metal parts One coat primary
Cable Electrical power 2000W, 220 Volt sockets -3*2.5 Nym, 2*1.5 Nym for lighting ÖZNUR Brand.
ELECTRICAL
INSTALLATION Lighting PELSAN and BALKAYA brands
over the Sockets and switches VİKO brand-classic
surface
Standard installment 1 pc socket, 1 pc telephone for each room,one glop above exterior door

Vitrifies DOĞVİT brand
Taps POLİSU brand
PLUMBING-
over the Clean water pipe PPRC-Fırat brand
surface
Dirty water pipe PVC-Fırat-Gediz brand
Accessory Toılet paper,soap holder,mirror,toilet seat
LIFTING Container should be lifted from top four corners by using steel ropes or slings

Our company has right of making changes in the specifications if necessary.
